| Business Type | Manufacturer, Exporter, Supplier |

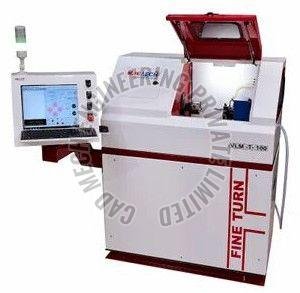

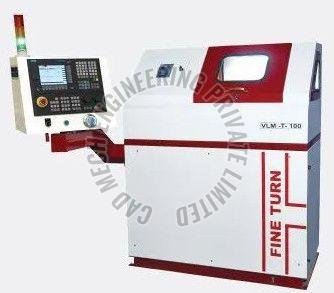

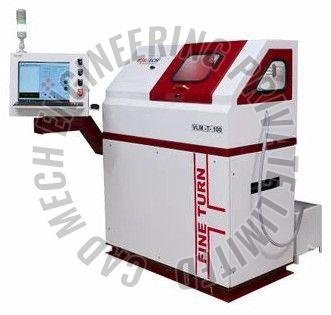

| Model Name/Number | VLM-T-100 |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
| Brand Name | Sinewave |
| Country of Origin | Made in India |
| No Of Stations | 8 |
Product Description
- Leveraging upon our technologically-advanced production facility we provide a super quality Educational CNC Drill Tutors Machine. Offered drill trainer is manufactured with the help of high grade component and modern technology by our experienced professionals. The provided drill trainer is used in the industry for different applications. Apart from this, offered drill trainer is available in different sizes and shapes as per the demands of our clients.
Features:
- Rigid structure
- Easy to use
- Precise design
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8Weeks
| Business Type | Exporter, Supplier |
| Application | Industrial |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Grade | Semi Automatic |
| Spindle Size | 100 Mm |
| Material | Mild Steel |
| Maximum Turning Length | 150 Mm |
| Maximum Turning Diameter | 30 Mm |
| Country of Origin | India |
| Model Name/Number | VLM-T-100 |
| Brand | Sinewave |
| Automatic Lubrication Points | Provided |
| Programmable Feed Rate | 0- 800 Mm/min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design

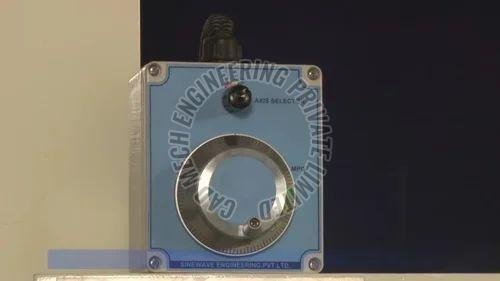

- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers

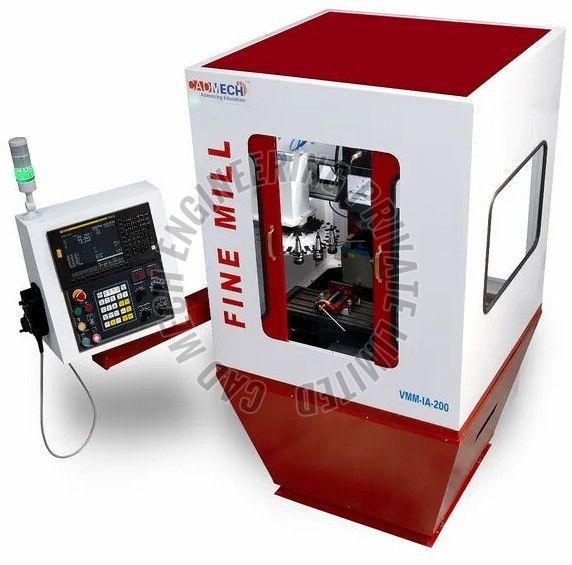

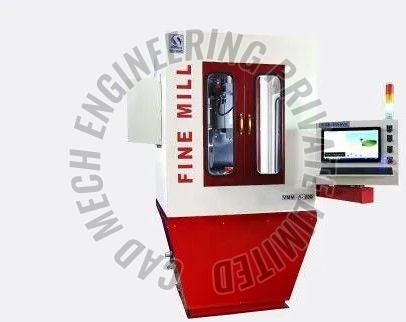

| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Application | For Training |
| Automation Grade | Semi-Automatic |

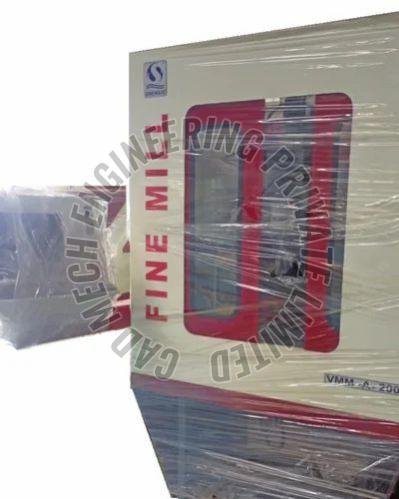

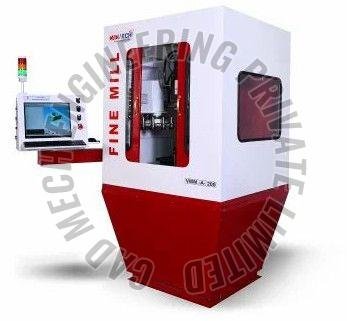

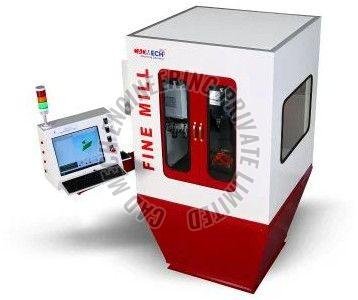

| Model/Type | VMM-A - 200 |
| Machining Centre | Vertical |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VMM-IA-200 Tabletop CNC Mill Machine.
Features:
- Rugged Machine with Ground Bed

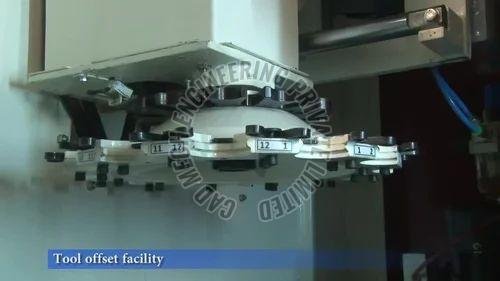

- 12 Station Programmable ATC
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Auto Door (Optional) features of cnc Mill trainers
Additional Information:
- Production Capacity: 4
- Delivery Time: 4-6 Weeks

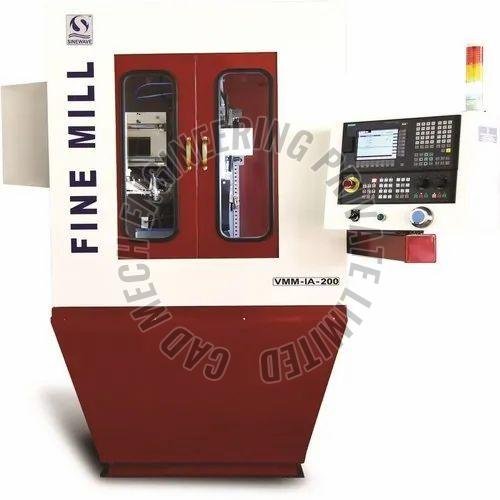

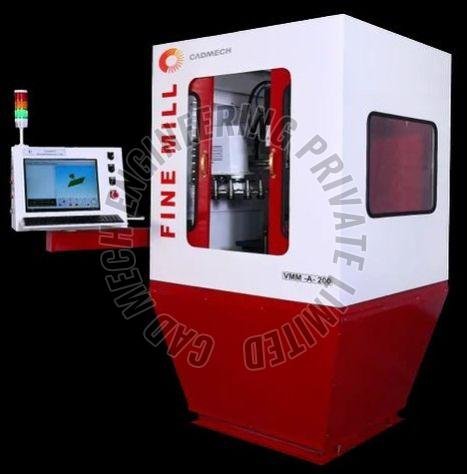

| Business Type | Manufacturer, Exporter, Supplier |
| Application | For Training |
| Country of Origin | Made In India |
| Automation Grade | Semi Automatic |
| Model/Type | VMM-A-200 |
| Machining Centre | Vertical |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 Mm/min. |
| Rapid Feed Rate | 0- 1200 Mm/min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Servo Motor |
| Mains Supply | 230 V AC, Single Phase |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VMM-IA-200 Tabletop CNC Mill Machine.
Features:
- Rugged Machine with Ground Bed
- 12 Station Programmable ATC
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Auto Door (Optional) features of cnc Mill trainers
Additional Information:
- Production Capacity: 4
- Delivery Time: 4-6 Weeks
| Business Type | Exporter, Supplier |
| Number Of Flower | Vertical Lathe |
| Place of Origin | Made In India |
| Material | Metal |
| Model Number | VMM-A-200 |
| Automation Type | Manual |
| Machine Condition | New |
| Controller | Industrial |
| Chuck Diameter | 100mm |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks

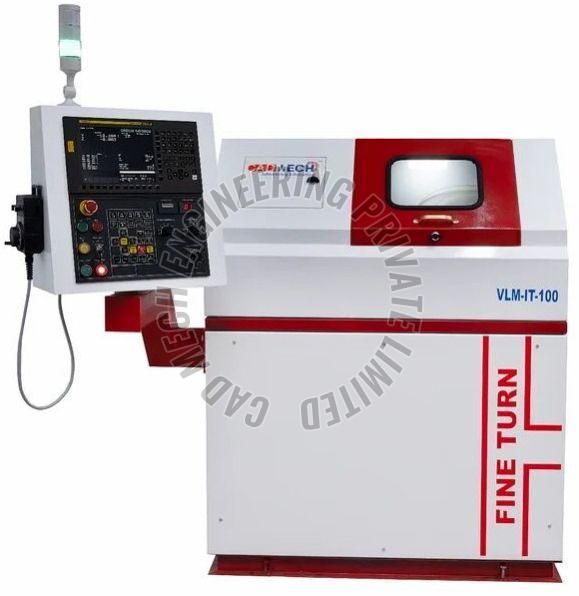

| Business Type | Manufacturer, Exporter, Supplier |
| Automation Type | Automatic |
| Brand Name | Cad Mech |
| Maximum Turning Length | 200 mm |
| Maximum Turning Diameter | 500 mm |
| Type | Horizontal Lathe |
| Applications | For Engineering/Training |
| Model | VLM-IT- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 Mm/min |
| Coolant System | 40 Lts. ( Programmable ) |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-IT-100 Educational CNC Lathe Machine.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made In India |
| Material | Mild Steel |
| Brand Name | Cad Mech |
| Model Name/Number | VMM-A-200 |
| Machine Condition | New |
| Rapid Travel | 1000 mm /min |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of Educational CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulatedkeyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 2
- Delivery Time: 6-8 Weeks

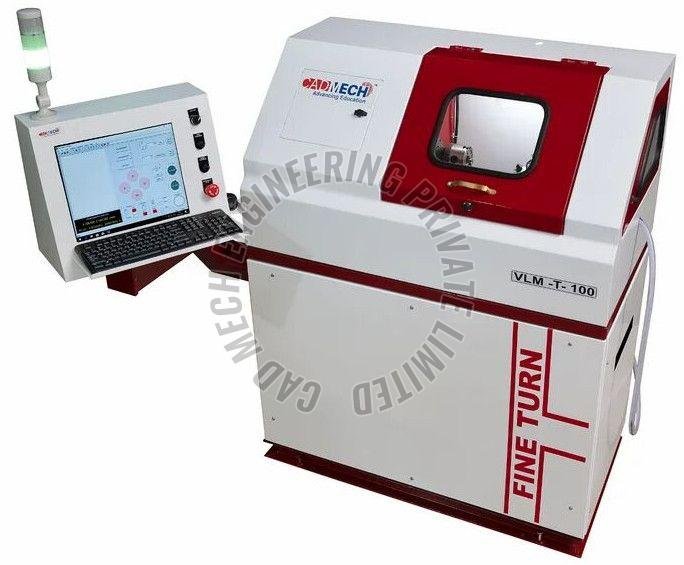

| Business Type | Manufacturer, Exporter, Supplier |
| Model Number | VLM-T-100 |
| Brand Name | Sinewave |
| Country of Origin | Made In India |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
| X-axis Stroke | 150 mm |
| X-axis Rapid | 0 - 1200 Mm/min |
| Z-axis Stroke | 200 Mm |
| No Of Stations | 8 |
Product Description
- With our expertise in the respective domain, we are engaged in offering CNC Lathe Trainer Kit, which is provided with table locking facility with stepper motor brakes. Known for their alarm & self diagnostic functions, these trainers can be directly linked to PC, thereby loading of program on micro-controller is not required. Besides, the trainer can also automatically detects wrong steps in programming.
Other Details:
- CAD-CAM compatibility
- Machine is directly linked to PC, hence loading of program on micro-controller is not required
- Easy maintenance with spare card system by layman
- Table Locking facility with stepper motor brakes
- Powerful stepper Motors for axis control
- Variable speed DC Drives for spindle with DC Motor
- Burn in components test at 150% load
- Rugged Machine with Ground Bed
- Wear resistant Turcite coating is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for Circular interpolation
- Display of Actual Feed rate, Spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety Functions with Emergency Stop, Over travel Limits
- Alarm & self Diagnostic Functions are Provided
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
- Light weight
- Accurate reading
- Excellent load capacity
| Business Type | Manufacturer, Exporter, Supplier |
| Automation Type | Automatic |
| Maximum Turning Length | 200 mm |
| Maximum Turning Diameter | 30mm |
| Spindle Motor Power Fanuc Continuous | 2HP |
| Type | Vertical Lathe |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Linear, Circular |
| Linear, Circular | 0- 800 Mm/min. |
| Rapid Feed Rate | 0- 1200 Mm/min |
| Coolant System | 40 Lts. ( Programmable ) |
| Mains Supply | 230 V AC, Single Phase |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
Additional Information:
- Item Code: CAD04
- Production Capacity: 3
- Delivery Time: 6-8 Weeks
- Packaging Details: Wooden
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Mild Steel |
| Brand Name | Cadmech |
| Automatic Grade | Automatic |
| Spindle Speed(RPM) | 3000 RPM |
| Usage/Application | Training |
| Power Source | Electric |
| Surface Treatment | Color Coated |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of Educational CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulatedkeyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 5
- Delivery Time: 4-6 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Sinewave |
| Country of Origin | Made in India |
| Machine Type | Horizontal Turning Centre |
| Maximum Turning Length | 150 mm |
| Machining Axis | 3 Axis |
| Maximum Turning Diameter | 30 mm |
| Model Name/Number | VLM-T-100 |
| Spindle Motor Power Fanuc Continuous | 2 HP DC Motor |
Product Description
- Leveraging upon our technologically-advanced production facility we provide a super quality Educational CNC Drill Tutors Machine. Offered drill trainer is manufactured with the help of high grade component and modern technology by our experienced professionals. The provided drill trainer is used in the industry for different applications. Apart from this, offered drill trainer is available in different sizes and shapes as per the demands of our clients.
Features:
- Rigid structure
- Easy to use
- Precise design
Additional Information:
- Production Capacity: 4
- Delivery Time: 4-6 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made In India |
| Model Number | VMM-A-200 |
| Color | Grey |
| Condition | New |
| Max Spindle Speed | 3000 |
| Maximum Turning Length | 150 mm |
| Maximum Turning Diameter | 30 mm |
| Spindle Size | 100 mm |
| Swing Over Carriage | 110 mm |
| Distance Between Centers | 400 mm |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Sinewave |
| Country of Origin | Made In India |
| Model Name/Number | VLM-T-100 |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
| Business Type | Exporter, Supplier |
| Country of Origin | Made in India |
| Automation Type | Automatic |
| Material | Mild Steel |
| Brand Name | Sinewave |
| Model Name/Number | VLM-IT100 |
| Type | Horizontal Lathe |
| Automation Grade | Semi-Automatic |
| Chuck Diameter | 135 mm |
| Controller | Siemens / Delta / Equivalent Industrial Controller |
| Machine Condition | New |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
| Business Type | Exporter, Supplier |
| Application | Training |
| Brand | Sinewave |
| Material | Cast Iron |
| Model | VMM-IA-200 |
| Kit Type | Educational Trainer Kit |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VMM-IA-200 Tabletop CNC Mill Machine.
Features:
- Rugged Machine with Ground Bed
- 12 Station Programmable ATC
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Auto Door (Optional) features of cnc Mill trainers
| Specifications: | |
| Model | VMM-IA- 200 |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | ø - 800 mm/Min.0- 800 mm/Min.( X,Y,Z ) |
| Rapid Feed Rate | ø - 1200 mm/Min.( X,Y,Z ) |
| Control System | PC Based System |
| Automatic Tool Changer | 12 Station ( Pneumatic ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper Motor |
| Mains Supply | 230 V AC, 1 Phase For Machine and 3 Phase 415 V AC for ATC |
| Machine Dimensions | Approx. 1200 x 1200 x 1800 mm |
| Total Weight | Approx. 1200 Kg. |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Cad Mech |
| Maximum Turning Diameter | 30mm |
| Maximum Turning Length | 200 Mm |
| Country of Origin | India |
| Model Name/Number | VLM-T-100 |
| Spindle Motor Power Fanuc Continuous | 300-3000 RPM |
| Turret Type | Electro Pneumatic |
| No Of Stations | 8 |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
Additional Information:
- Item Code: CAD06
- Production Capacity: 3
- Delivery Time: 6-8Weeks
- Packaging Details: Wooden
| Other Specifications: | |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper / Servo Motor (Optional) |
| Mains Supply | 230 V AC, Single Phase |
| Business Type | Manufacturer, Exporter, Supplier |
| Automation Grade | Semi Automatic |
| Application | Industrial |
| Swing Over Bed | 110 Mm |
| Country of Origin | Made in India |
| Material | Mild Steel |
| Power | 2 H.P |
| Model Name/Number | VLM-T-100 |
| Range of Spindle Speeds | 300-3000 RPM |
| Type of Lathe Machine | Trainer |
Product Description
- We are a trustworthy organization in the market, actively engrossed in offering a wide gamut of Tabletop Lathe Machine.
Additional Information:
- Production Capacity: 2
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Sinewave |
| Country of Origin | Made In India |
| Control System | PC Based System |
| Material | Mild Steel |
| Model Name/Number | VLM-T-100 |
| Controller | PC Based |
| Machine Condition | New |
| Turret | 8 Station ( Electro - Pneumatic ) |
| Total Weight | 900 Kg |
| X-Axis Travel | 150 mm |
| Chuck Size | 100 mm |
| Spindle Motor | 2 HP |
| Resolution | 0.005 mm |
| Machine Dimensions | 1500 x 900 x 1500 mm |
| Repeatability | +/- 0.01 mm |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Swing Over Cross Slide | 80 mm |
| Spindle Nose Taper | MT3 |
| Standard Cutting Tool Size | 16 x 16 mm |
| Z-Axis Travel | 200 mm |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cad Mech |
| Model Name/Number | VMM-A- 200 |
| Maximum Tool Length | 70 mm |
| Table Size | 500 x 200 mm |
| Spindle to Column | 110 mm |
| Spindle Inside Taper | BT 30 / ISO 30 |
| X-axis Travel | 250 mm |
| Z-Axis Travel | 200 mm |
| Y-Axis Travel | 175 mm |
| Spindle Nose to Table | 40-190 mm |
| Maximum Tool Diameter | 12 mm |
| Resolution | 0.005 mm |
| Repeatability | +/-0.01 mm |
| Interpolation | Linear,Circular |
Product Description
- In order to cater the variegated demands of our precious clients, we are offering an excellent quality range of VMM-A-200 CNC Lathe Mill Trainer Machine.
Features:
- Rugged Machine with Ground Bed
- 12 Station Programmable ATC
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional)
| Specifications: | |
| Model | VMM-A- 200 |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | ø - 800 mm/Min.0- 800 mm/Min.( X,Y,Z ) |
| Rapid Feed Rate | ø - 1200 mm/Min.( X,Y,Z ) |
| Control System | PC Based System |
| Automatic Tool Changer | 12 Station ( Pneumatic ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper Motor |
| Mains Supply | 230 V AC, 1 Phase For Machine and 3 Phase 415 V AC for ATC |
| Machine Dimensions | Approx. 1200 x 1200 x 1800 mm |
| Total Weight | Approx. 1200 Kg. |
