CNC Trainer Machines
Leading Manufacturers, Exporters and Wholesaler of 5 Axis Desktop Mini CNC Milling Machine, V2 10 for Prototyping, Automatic CNC Lathe Trainer Machine, for Engineering Colleges, Cadmech Fanuc CNC Lathe Trainer, CNC Drill Trainer Machines, for Engineering, CNC Drill Trainer, for CAD CAM Lab for Engineering, CNC Drill Tutors Machine for Engineering, CNC Lathe Machine with Flatbed for Engineering, CNC Lathe Machine with Slant Bed, for Engineering Education, CNC Lathe Trainer Kit, for Engineering, CNC Lathe Trainer Machine, for Engineering, CNC Lathe Trainer, with Fanuc Controller, CNC Lathe Trainers, with Industrial Controller for Engineering, CNC Lathe Training Machine, for Engineering, CNC Lathe Tutor Machine for Engineering, CNC Mill Trainer For Education, For Engineering, CNC Mill Trainer Machine, With Industrial Controller For Training For Engineering, CNC Mill Trainer, VMM-A-200 For Engineering, CNC Mill Training Machine, for Education For Engineering, CNC Milling Machine Trainer, CNC Milling Machine, with Fanuc Controller For Engineering Education, CNC Milling Trainers Machines, for Training For Engineering and CNC Production Cum Trainer, For Engineering from Pune.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cad Mech |
| X-Y Axis Working Area | 2000 x 3000 mm |
| Z Axis Working Area | 100 mm |
| Job Materials | Metal |
| Voltage | 220V |
| Phase | Double Phase |
| Model Number | V-10 |
Product Description

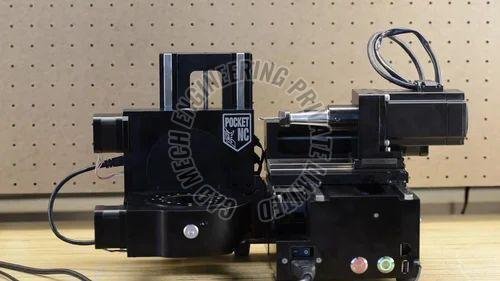

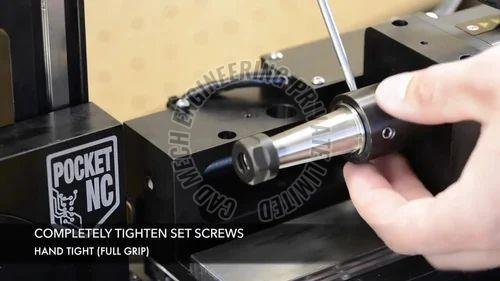

- The 5-Axis Desktop Mini CNC Machine V2-10 is a compact and highly versatile tool designed for precision prototyping and small-scale manufacturing. This machine features five axes of movement, allowing it to create intricate and complex shapes that are difficult or impossible to achieve with traditional 3-axis CNC machines.
Key features of the V2-10 include:
- Precision Machining: High accuracy in milling, engraving, and cutting, making it ideal for detailed work on materials such as wood, plastics, and soft metals.
- Compact Design: Small footprint, perfect for desktop use in workshops, labs, or home studios.
- 5-Axis Capability: Allows for more complex and detailed operations, including undercuts, angled surfaces, and multi-sided machining in a single setup.
- User-Friendly Interface: Equipped with an intuitive control system, often with a touch screen and software that supports various file formats.
- Versatile Applications: Suitable for prototyping, educational purposes, hobbyist projects, and small-scale production runs.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Maximum Turning Length | 200 mm |
| Maximum Turning Diameter | 30 mm |
| Spindle Size | 100 mm |
| Max Spindle Speed | 300-3000 RPM |
| Spindle Motor Power | 2 H.P |
| Turret Type | Electro Pneumatic |
| No Of Stations | 8 |
Product Description
- Leveraging upon our technologically-advanced production facility we provide a super quality Educational CNC Drill Tutors Machine. Offered drill trainer is manufactured with the help of high grade component and modern technology by our experienced professionals. The provided drill trainer is used in the industry for different applications. Apart from this, offered drill trainer is available in different sizes and shapes as per the demands of our clients.
Features:
- Rigid structure
- Easy to use
- Precise design
Additional Information:
- Item Code: CAD02
- Production Capacity: 3
- Delivery Time: 6-8 Weeks
- Packaging Details: Wooden
| Other Specifications: | |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper / Servo Motor (Optional) |
| Mains Supply | 230 V AC, Single Phase |
| Business Type | Manufacturer, Exporter, Supplier |
| Automatic Grade | Automatic |
| Center Height | 100mm |
| Spindle Size | 2-5 HP |
| Minimum Increment | 0.01 % |
| Spindle Motor Power Fanuc Continuous | 1.5 KW |
| Country of Origin | Made in India |
| Maximum Turning Length | 200 mm |
| Maximum Turning Diameter | 500 mm |
| Brand Name | Cad Mech |
| Model | VLM-T- 100 |

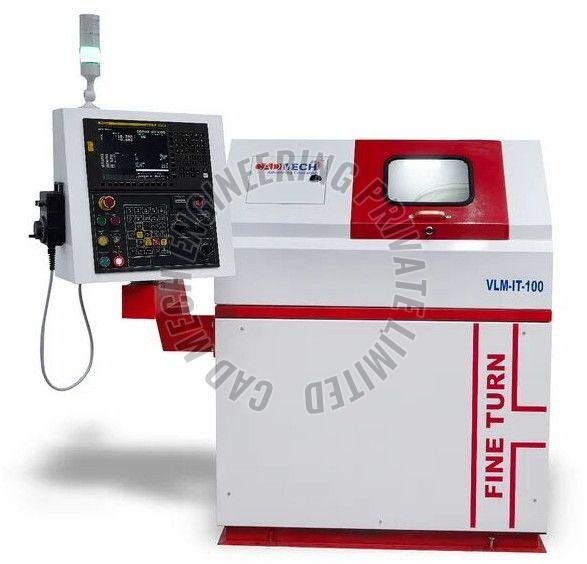

Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-IT-100 Educational CNC Lathe Machine.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
Additional Information:
- Production Capacity: 5
- Delivery Time: 4-6 Weeks
- Packaging Details: Wooden
| Other Specifications: | |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper / Servo Motor (Optional) |
| Mains Supply | 230 V AC, Single Phase |
| Business Type | Manufacturer, Exporter, Supplier |
| Model Number | VMM- A- 200 |
| Usage | Training |
| Place of Origin | Made In India |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Automatic Grade | Automatic |
| Application | For Training |
| Color | White And Red |
| Country of Origin | Made in India |
| Model Name/Number | VMM-A-200 |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Machine Dimensions | Approx. 1200 x 1200 x 1800 mm |
| Total Weight | Approx. 1200 Kg |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Color | White and Red |
| Type | Vertical Lathe |
| Place of Origin | Made In India |
| Usage | Training |
| Model Number | VMM-A-200 |
| Material | Mild Steel |
| Controller | Industrial |
| Chuck Diameter | 100mm |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Machining Axis | 3-Axis |
| Machine Type | Vertical Turning Centre |
| Job Material | Metal |
| Chuck Diameter | 165 mm |
| Country of Origin | Made in India |
| Model | VLM-T-100 |
| Brand Name | Cadmech |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Additional Information:
- Item Code: VLM-T-100
- Production Capacity: 3
- Delivery Time: 6-8 Weeks
- Packaging Details: Wooden
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cad Mech |
| Country of Origin | Made in India |
| Maximum Turning Length | 200 mm |
| Maximum Turning Diameter | 30 mm |
| Spindle Motor Power | 300-3000 RPM |
| Chuck Diameter | 165 mm |
| Control | PC Based |
| Model | VLM-T-100 |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
| Other Specifications: | |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper / Servo Motor (Optional) |
| Mains Supply | 230 V AC, Single Phase |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Brand Name | Sinewave |
| Model Name/Number | VLM-T-100 |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
| Standard Chuck Size | 100 mm |
| X-Axis Stroke | 150 mm |
| X-axis Rapid | -0 to 1200 Mm/min |
| Z-Axis Stroke | 200 mm |
| Z-axis Rapid | 0 - 1200 mm/min |
| No Of Stations | 8 Stations |
Product Description
- With our expertise in the respective domain, we are engaged in offering CNC Lathe Trainer Kit, which is provided with table locking facility with stepper motor brakes. Known for their alarm & self diagnostic functions, these trainers can be directly linked to PC, thereby loading of program on micro-controller is not required. Besides, the trainer can also automatically detects wrong steps in programming.
Other Details:
- CAD-CAM compatibility
- Machine is directly linked to PC, hence loading of program on micro-controller is not required
- Easy maintenance with spare card system by layman
- Table Locking facility with stepper motor brakes
- Powerful stepper Motors for axis control
- Variable speed DC Drives for spindle with DC Motor
- Burn in components test at 150% load
- Rugged Machine with Ground Bed
- Wear resistant Turcite coating is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for Circular interpolation
- Display of Actual Feed rate, Spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety Functions with Emergency Stop, Over travel Limits
- Alarm & self Diagnostic Functions are Provided
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
- Light weight
- Accurate reading
- Excellent load capacity
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Brand Name | Sinewave |
| Model Name/Number | VLM-T-100 |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min |
| Coolant System | 40 Liters. ( Programmable ) |
| Mains Supply | 230 V AC, Single Phase |
Product Description
- With our expertise in the respective domain, we are engaged in offering CNC Lathe Trainer Kit, which is provided with table locking facility with stepper motor brakes. Known for their alarm & self diagnostic functions, these trainers can be directly linked to PC, thereby loading of program on micro-controller is not required. Besides, the trainer can also automatically detects wrong steps in programming.
Other Details:
- CAD-CAM compatibility
- Machine is directly linked to PC, hence loading of program on micro-controller is not required
- Easy maintenance with spare card system by layman
- Table Locking facility with stepper motor brakes
- Powerful stepper Motors for axis control
- Variable speed DC Drives for spindle with DC Motor
- Burn in components test at 150% load
- Rugged Machine with Ground Bed
- Wear resistant Turcite coating is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for Circular interpolation
- Display of Actual Feed rate, Spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety Functions with Emergency Stop, Over travel Limits
- Alarm & self Diagnostic Functions are Provided
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
- Light weight
- Accurate reading
- Excellent load capacity
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cad Mech |
| Country of Origin | Made in India |
| Automatic Grade | Automatic |
| Center Height | 100 mm |
| Spindle Size | 5 HP |
| Maximum Turning Length | 200 mm |
| Model | VLM-IT-100 |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-IT-100 Educational CNC Lathe Machine.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
Additional Information:
- Production Capacity: 5
- Delivery Time: 4-6 weeks
- Packaging Details: wooden
| Other Specifications: | |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper / Servo Motor (Optional) |
| Mains Supply | 230 V AC, Single Phase |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Brand Name | Sinewave |
| Model Name/Number | VLM-T-100 |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
Product Description
- With our expertise in the respective domain, we are engaged in offering CNC Lathe Trainer Kit, which is provided with table locking facility with stepper motor brakes. Known for their alarm & self diagnostic functions, these trainers can be directly linked to PC, thereby loading of program on micro-controller is not required. Besides, the trainer can also automatically detects wrong steps in programming.
Other Details:
- CAD-CAM compatibility
- Machine is directly linked to PC, hence loading of program on micro-controller is not required
- Easy maintenance with spare card system by layman
- Table Locking facility with stepper motor brakes
- Powerful stepper Motors for axis control
- Variable speed DC Drives for spindle with DC Motor
- Burn in components test at 150% load
- Rugged Machine with Ground Bed
- Wear resistant Turcite coating is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for Circular interpolation
- Display of Actual Feed rate, Spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety Functions with Emergency Stop, Over travel Limits
- Alarm & self Diagnostic Functions are Provided
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
- Light weight
- Accurate reading
- Excellent load capacity
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cadmech |
| Country of Origin | Made in India |
| Model Name/Number | VLM-T-100 |
| Turret Type | Electro-Pneumatic |
| Overall Weight | 900 Kg |
| Mains Supply | 230 VAC |
| Phase | Single Phase |
Produt Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
Additional Information:
- Production Capacity: 3
- Delivery Time: 6-8 Weeks
| Other Specifications: | |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper / Servo Motor (Optional) |
| Mains Supply | 230 V AC, Single Phase |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Brand Name | Sinewave |
| Model Name/Number | VLM-T-100 |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| X-Axis Stroke | 150 mm |
| X-Axis Rapid | 0 - 1200 Mm/min |
| Z-Axis Stroke | 200 mm |
| Turret Type | Electro-Pneumatic |
| No Of Stations | 8 |
Product Description
- Leveraging upon our technologically-advanced production facility we provide a super quality Educational CNC Drill Tutors Machine. Offered drill trainer is manufactured with the help of high grade component and modern technology by our experienced professionals. The provided drill trainer is used in the industry for different applications. Apart from this, offered drill trainer is available in different sizes and shapes as per the demands of our clients.
Features:
- Rigid structure
- Easy to use
- Precise design
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cad Mech |
| Country of Origin | Made In India |
| Model | VMM-A- 200 |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
| Model Name/Number | VMA-200 |
| Swing Over Carriage | 110 mm |
| Distance Between Centers | 400 mm |
| Max Spindle Speed | 3000 RPM |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks
| Specifications: | |
| Model | VMM-A- 200 |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | ø - 800 mm/Min.0- 800 mm/Min.( X,Y,Z ) |
| Rapid Feed Rate | ø - 1200 mm/Min.( X,Y,Z ) |
| Control System | PC Based System |
| Automatic Tool Changer | 12 Station ( Pneumatic ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper Motor |
| Mains Supply | 230 V AC, 1 Phase For Machine and 3 Phase 415 V AC for ATC |
| Machine Dimensions | Approx. 1200 x 1200 x 1800 mm |
| Total Weight | Approx. 1200 Kg. |
12.50 Lac / piece
Get Best Price
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cad Mech |
| Country of Origin | Made In India |
| Type | CNC Mill Trainer Machine |
| Material | High Quality Components And High-end Equipment |
| Model | VNM-IA-200 |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
| Usage | Design Modules And Other Purposes |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer Machine with Industrial Control. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks
| Business Type | Exporter, Supplier |
| Country of Origin | Made In India |
| Color | White,Red |
| Material | Mild Steel |
| Brand Name | Sinewave |
| Model | VMM-A-200 |
| Machine Condition | New |
| Usage/application | Used as Training Equipments |
| Table Top to Spindle Nose Distance | 40-190mm |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 2
- Delivery Time: 6-8 Weeks
| Business Type | Exporter, Supplier |
| Country of Origin | Made in India |
| Color | White, Red |
| Material | Mild Steel |
| Model Name/Number | VMM-A- 200 |
| Rapid Travel | 1000 mm /min |
| Spindle Nose distance | 40-190mm |
| Brand | Sinewave |
Product Description
- In order to cater the variegated demands of our precious clients, we are offering an excellent quality range of VMM-A-200 CNC Lathe Mill Trainer Machine.
Features:
- Rugged Machine with Ground Bed
- 12 Station Programmable ATC
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional)
| Specifications: | |
| Model | VMM-A- 200 |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | ø - 800 mm/Min.0- 800 mm/Min.( X,Y,Z ) |
| Rapid Feed Rate | ø - 1200 mm/Min.( X,Y,Z ) |
| Control System | PC Based System |
| Automatic Tool Changer | 12 Station ( Pneumatic ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper Motor |
| Mains Supply | 230 V AC, 1 Phase For Machine and 3 Phase 415 V AC for ATC |
| Machine Dimensions | Approx. 1200 x 1200 x 1800 mm |
| Total Weight | Approx. 1200 Kg. |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made In India |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Spindle Size | 100 mm |
| Model Name/Number | VLM-T-100 |
| No Of Station | 12 Stations |
| Automatic Lubrication Points | Provided |
| Interpolation | Circular |
| Programmable Feed Rate | 0- 800 mm/Min.( X,Y,Z ) |
| Rapid Feed Rate | 0- 1200 mm/Min.( X,Y,Z ) |
| Mains Supply | 230 V AC, 1 Phase |
| Machine Dimensions | Approx. 1200 x 1200 x 1800 mm |
| Total Weight | Approx. 1200 Kg |
Product Description
- In order to cater the variegated demands of our precious clients, we are offering an excellent quality range of VMM-A-200 CNC Lathe Mill Trainer Machine.
Features:
- Rugged Machine with Ground Bed
- 12 Station Programmable ATC
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional)
14.71 Lac / Piece
Get Best Price
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cadmech |
| Usage/Application | For Education/Training |
| Material | Mild Steel |
| XY Axis Working Area | 300 x 300 mm |
| Spindle Speed (RPM) | 3000 RPM |
| Automation Grade | Automatic |
| Type | Educational CNC Mill Trainer |
Product Description
- With sincere intentions to uplift our reputation in the market, we bring a distinguished assortment of Educational CNC Mill Trainer. Provided mill trainers are manufactured with high quality component and high end equipment. These mill trainers are used to design modules and other purposes. Our offered mill trainers are available in numerous specifications as per the market standards. We provide these mill trainers to our clients in the committed time and affordable prices.
Features:
- Sturdy construction
- Reliable
- Fine finish
Other Details:
- CAD-CAM compatibility
- FANUC emulatedkeyboard
- Machine is directly linked to PC, hence loading of program on micro -controller is not required
- Easy maintenance with spore cord system by layman
- Table locking facility with stepper motor brakes
- Powerful stepper motors for axis control
- Variable speed DC drives for spindle with DC motor
- Burn in components test at 150% load
- Rugged machine with ground bed
- Wear resistant turcite material is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for circular interpolation
- Display of actual feed rate, spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 5
- Delivery Time: 4-6 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Mild Steel |
| Color | White And Red |
| Country of Origin | Made In India |
| Model | VMM-A- 200 |
| Rapid Travel | 1000 mm /min |
| Table Top to Spindle Nose Distance | 40-190mm |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 Mm/min.( X,Y,Z ) |
| Rapid Feed Rate | 0- 1200 mm/Min.( X,Y,Z ) |
| Control System | System |
| Automatic Tool Changer | 12 Station ( Pneumatic ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper Motor |
| Mains Supply | 230 V AC |
| Machine Dimensions | Approx. 1200 x 1200 x 1800 mm |
| Total Weight | Approx. 1200 Kg |
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VMM-A-200 Tabletop CNC Mill Machine.
Features:
- Rugged Machine with Ground Bed
- 12 Station Programmable ATC
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Auto Door (Optional) features of cnc Mill trainers
Additional Information:
- Production Capacity: 4
- Delivery Time: 4-6 Weeks
| Business Type | Manufacturer, Exporter, Supplier |
| Maximum Turning Diameter | 30 mm |
| Maximum Turning Length | 150 mm |
| Model Name/Number | VLM-IA-200 |
| Distance Between Centers | 400 mm |
| Max Spindle Speed | 3000 RPM |
| Machine Dimensions | Approx. 1200 x 1200 x 1800 mm |
| Total Weight | Approx. 1200 Kg |
Product Description
- Backed by advanced manufacturing unit, we have been able to develop comprehensive range of CNC Production Cum Trainer to our clients. These are provided with table locking facility with stepper motor brakes, fanuc emulated keyboard and high speed integer interpolation to ensure optimum functionality. Having powerful PC software for graphics, these machine can automatically detect wrong steps in programming.
Features:
- Easy to start
- Less noise level
- Precise control
Other Details:
- CAD-CAM compatibility
- Fanuc Emulated keyboard
- Machine is directly linked to PC, hence loading of program on micro-controller is not required
- Easy maintenance with spare card system by layman
- Table Locking facility with stepper motor brakes
- Powerful stepper Motors for axis control
- Variable speed DC Drives for spindle with DC Motor
- Burn in components test at 150% load
- Rugged Machine with Ground Bed
- Wear resistant Turcite coating is provided on beds
- Stick slip motion is totally avoided
- Powerful PC software for graphics
- High speed integer interpolation system for Circular interpolation
- Display of Actual Feed rate, Spindle speed in execution & simulation mode
- Automatically detects wrong steps in programming
- Safety functions with emergency stop, over travel limits
- Alarm & self diagnostic functions are provided
Additional Information:
- Production Capacity: 4
- Delivery Time: 6-8 Weeks
