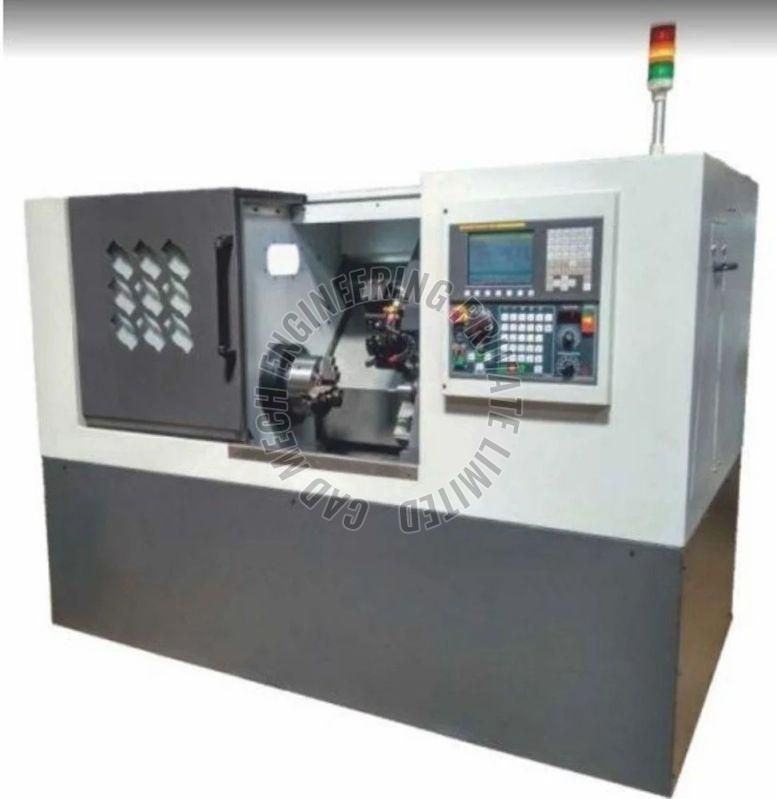

CNC Turning Centers
Leading Manufacturers, Exporters and Wholesaler of CNC Turning Center, for Education, Fanuc CNC Turning Machine, for Education and Mini CNC Turning Machine from Pune.
| Business Type | Manufacturer, Exporter, Supplier |
| Usage/Application | Education |
| Type | CNC Turning Center |
| Brand Name | Cad Mech |
| Country of Origin | Made in India |
| Machining Axis | 3-Axis |
| Machine Type | Horizontal Turning Centre |
| Chuck Diameter | 165 mm |
| Key Features | Monoblock Slant Bed Structure For Rigidity,Rigid Headstock |
Product Description
Key Features:
- Monoblock slant bed structure for rigidity.
- Rigid headstock & spindle.
- High precision L.M. guide ways.
- AC spindle and AC servo digital drive.
- Hydraulic chucking.
- Auto and manual coolant system.
- Electrical with quality devices & panel with A.C.
- Centralized & programmable lubrication.
Additional Information:
- Item Code: 09
- Production Capacity: 2
- Delivery Time: 8-10 weeks
- Packaging Details: Wooden packing
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Cad Mech |
| Maximum Turning Length | 200 mm |
| Machining Axis | 3 Axis |
| Chuck Size | 102 mm |

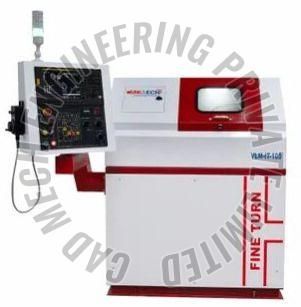

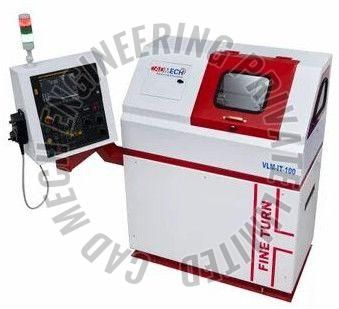

| Model | VLM-IT-100 |
| Applicable Industry | Educational/Training |
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-IT-100 Educational CNC Lathe Machine.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
| Other Specifications: | |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper / Servo Motor (Optional) |
| Mains Supply | 230 V AC, Single Phase |
| Business Type | Manufacturer, Exporter, Supplier |
| X-Y Axis Working Area | 300 x 300 mm |
| Z Axis Working Area | 350 mm |
| Job Materials | Metal |
| Voltage | 415 V |
| Phase | 3 Single |
| Chuck Type | Hydraulic |
| Chuck Size | 135 mm |
| Country of Origin | Made in India |
| Brand Name | Cad Mech |

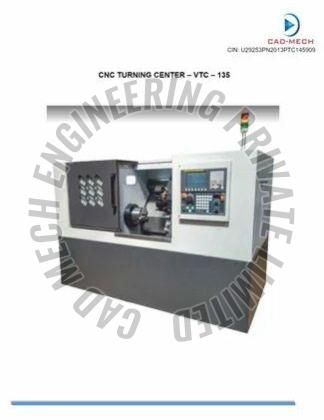

| Model | VTC 135 |
Product Description

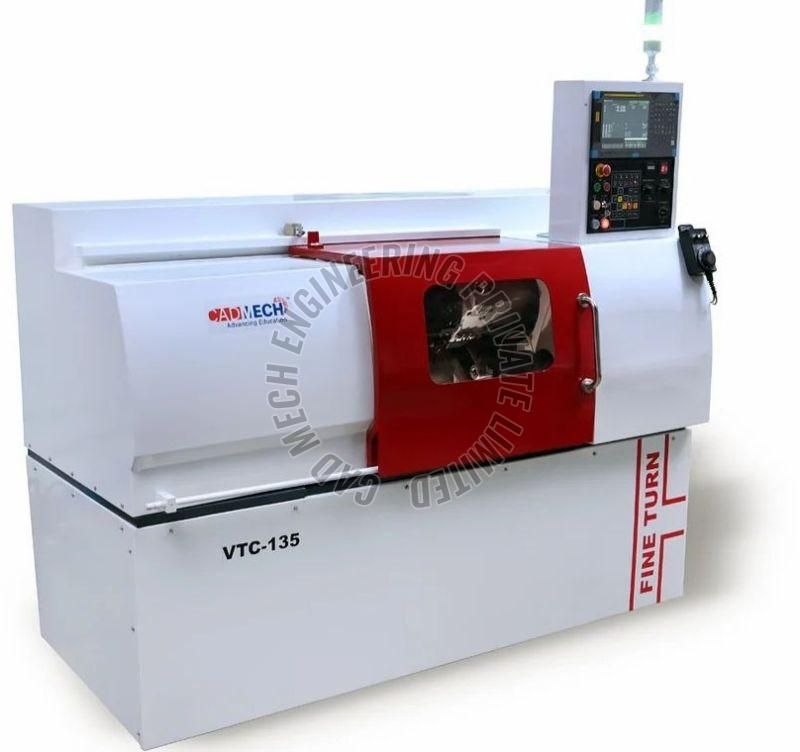

- Mini Cnc Turning Machine
Additional Information:
- Item Code: VTC-135
- Delivery Time: 6 - 8 Week
