7.10 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Cad Mech |
| Maximum Turning Diameter | 30mm |
| Maximum Turning Length | 200 Mm |
| Click to view more | |
Product Details
Country of Origin
India
Model Name/Number
VLM-T-100
Spindle Motor Power Fanuc Continuous
300-3000 RPM
Turret Type
Electro Pneumatic
No Of Stations
8
Product Description
- We are successfully meeting the varied requirements of our clients by providing the best quality range of VLM-T-100 Educational CNC Lathe Trainer.
Features:
- Rugged Machine with Ground Bed
- 8 Station Programmable Turret
- Industrial Motion Controller
- Latest Technological Platform for Software
- Interactive CNC Part Programming Software
- 3D Material Removal Simulation
- STL Import / Export Facility
- Innovative live View on Screen
- Customizable Tool Library
- Customizable STK Design
- Manual Pulse Generator (Optional)
- FMS & CIM Compatibility
- Hydraulic Chuck (Optional)
- Auto Door (Optional) features of cnc lathe trainers
Additional Information:
- Item Code: CAD06
- Production Capacity: 3
- Delivery Time: 6-8Weeks
- Packaging Details: Wooden
| Other Specifications: | |
| Model | VLM-T- 100 |
| Spindle Motor | 2 H.P DC Motor ( 300-3000 RPM) |
| Automatic Lubrication Points | Provided |
| Interpolation | Linear, Circular |
| Programmable Feed Rate | 0- 800 mm/Min. |
| Rapid Feed Rate | 0- 1200 mm/Min |
| Coolant System | 40 Lts. ( Programmable ) |
| Lubrication | Centralized ( Programmable ) |
| Axis Motor | Stepper / Servo Motor (Optional) |
| Mains Supply | 230 V AC, Single Phase |

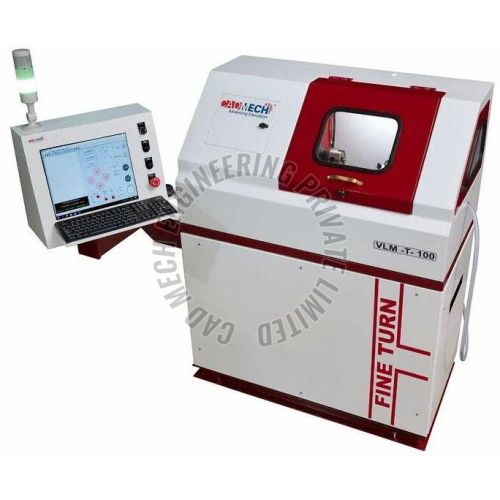

Looking for "Table Top CNC Trainer Lathe Machine for Engineering Colleges" ?
